ASF-34-30-B25-21

Assise de la plaquette

B25

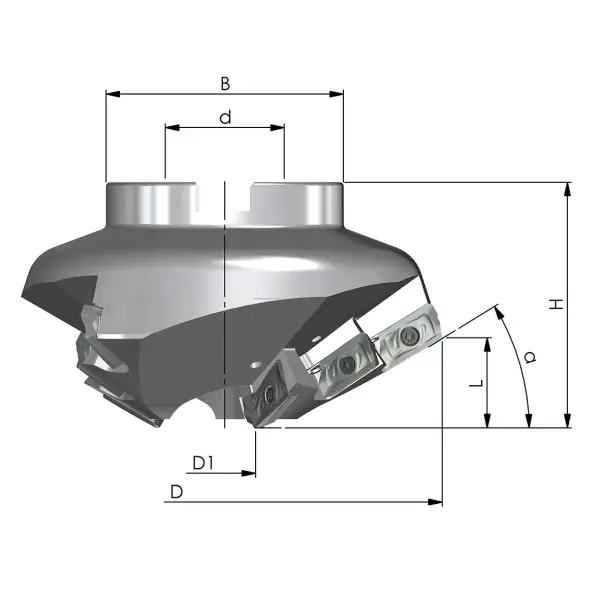

Diamètre de coupe (D) [mm]

108,0

Diamètre de coupe 1 (D1) [mm]

34

Angle (a) [°]

30°

Hauteur (H) [mm]

60

Longueur totale (L) [mm]

21,5

Diamètre d'alésage (d H6) [mm]

27

Largeur d`épaulement (B) [mm]

58

Nombre de dents (Z)

3x3

JMB25-70AR08-HC20 JMB25-70MR08-HC45 JMB25-70MR20-HC45 JMB25-70MR08-K15M JMB25-70AR08-XC34 JMB25-70MR04-HC45 JMB25-70MR12-HC45 JMB25-70MR20-K15M JMB25-70MR12-K15M JMB25-70AR08-HC30 JMB25-70SR08-HC30 JMB25-70MR12-XC34 JMB25-70MR04-K15M JMB25-70MR16-XC34 JMB25-70MR25-K15M JMB25-70AR08-HC45 JMB25-70MR08-XC34 JMB25-70SR08-HC20 JMB25-70MR25-XC34 JMB25-70MR04-XC34 JMB25-70HR08-HC45 JMB25-70SR08-HC45 JMB25-70AR08-XC35 JMB25-70MR25-HC45 JMB25-70MR02-HC45 JMB25-70MR08-XC35 JMB25-70MR02-K15M JMB25-70MR16-K15M JMB25-70HR08-HC30 JMB25-70MR16-HC45 JMB25-70MR20-XC34 JMB25-70MR02-XC34 JMB25-70AR04-K15M JMB25-70HR08-HC20
